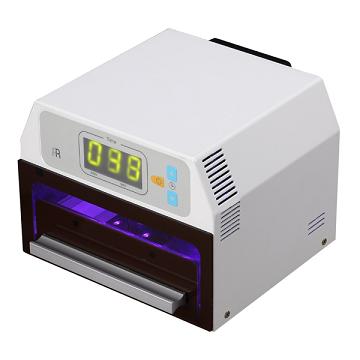

The Elite UV Model Cure is a compact, high-speed, high-intensity UV post-curing solution for resin models for use in applications such as jewellery, dental, prototyping, model making, & more. This unit features a slide out drawer, timer, completion alarm, and memory settings which enable a fast, precise, repeatable workflow. The Elite Model Cure’s powerful design dramatically reduces curing times compared to other curing units.

Key features:

• Digital timer display: 10 seconds to 9:50 min.
• Recommended cure time:  Small models 5 minutes. Large models 5-10 min depending upon thickness and size.
• A high-performance cooling fan prevents overheating.
•  Wide chamber, capable of curing several models at once.
•  Light-energy intensity over 40.0 mW/cm², much higher than competitors.
•  Audible beeping notice when curing process is completed.
•  Safety switch functions to prevent light emission when door is open.
• Typical LED life exceeds 50,000 hours which is equates to more than 60 years at 1 hour per day.
•  Compact, space-saving design.

Unit Specifications

Power Output: 65 Watts

Power Input: 100-220 VAC / 50-60 Hz

Light Source: UV LED

UV Wavelength: 390-410 nm

External Unit Dimensions: 21.6cm x 20cm x 15cm

Internal Chamber Dimensions: 12.7cm x 17cm x 7cm

Unit Weight: 3.3KG (7.27lbs)
